New Arrival 4K Hunting Camera 20MP 2.4 Inch TFT LCD IP66 Waterproof

Place of Origin China
Brand Name Tsdatech/OEM/ODM
Certification CE, RoHS,FCC
Model Number H982
Minimum Order Quantity 2
Packaging Details Single package size: 196*123*101mm/600g
Delivery Time 5-10 work days
Payment Terms L/C, T/T, , Western Union,Paypal etc.
Supply Ability 3000 Piece/Pieces per Day

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MegaPixel 3MP-16MP Video Resolution 4K/2.7K/1080P
Memory Card Type TF PIR Angle 80 Degree
Waterproof IP 66 Special Feature Waterproof
Optical Zoom No Products Nam Wifi Hunting Trail Camera
Leave a Message
Product Description
New Arrival 4K Hunting Camera 20MP 2.4 Inch TFT LCD IP66 Waterproof​
Product Details

[MP3 Features] The trail camera Pro# can timing to play various sounds of birds and beasts to attract or repel animals during hunting or farm monitoring.
[Motion Activated Alarm] Once detecting the movements, the hunting camera will be triggered then will alarm after taking pictures. Suitable for home security, backyard or farm monitoring. Customizable alarm sound and alarm duration.
[HD 2.7K Video Resolution & 20MP Clear Image] The trail camera can capture 20MP images and HD 2.7K videos, providing you a vivid world of wildlife during the day(color) and night(black and white). The resolution of the image and video is switchable.
[Fast 0.2s Trigger Speed & 98ft Trigger Distance] Once detecting any movements, this camera will be activated in 0.2s to capture the best moment! The trigger distance is up to 30m(98ft). 110°detecting range allows you to get a broader view!
[Excellent Night Vision] The hunting camera is equipped with 3 sensors, the excellent sensitivity will never miss any exciting moments. 42pcs infrared LEDs, which ensures you a clear image and video at night time. The 2.8" LCD ensures that you can set up the camera or view images and videos easier!

Product Specifications
Still image size
Video clip
3840x2160/10fps;2688x1520/20fps;1920x1080/30fps;1280x720/60fps;1280x720/30fps;720x480/30fps; 640x480/30fps;320x240/30fps
File format
Lens angle
f=3.3mm; F/NO 2.0; FOV=105; Auto IR filter

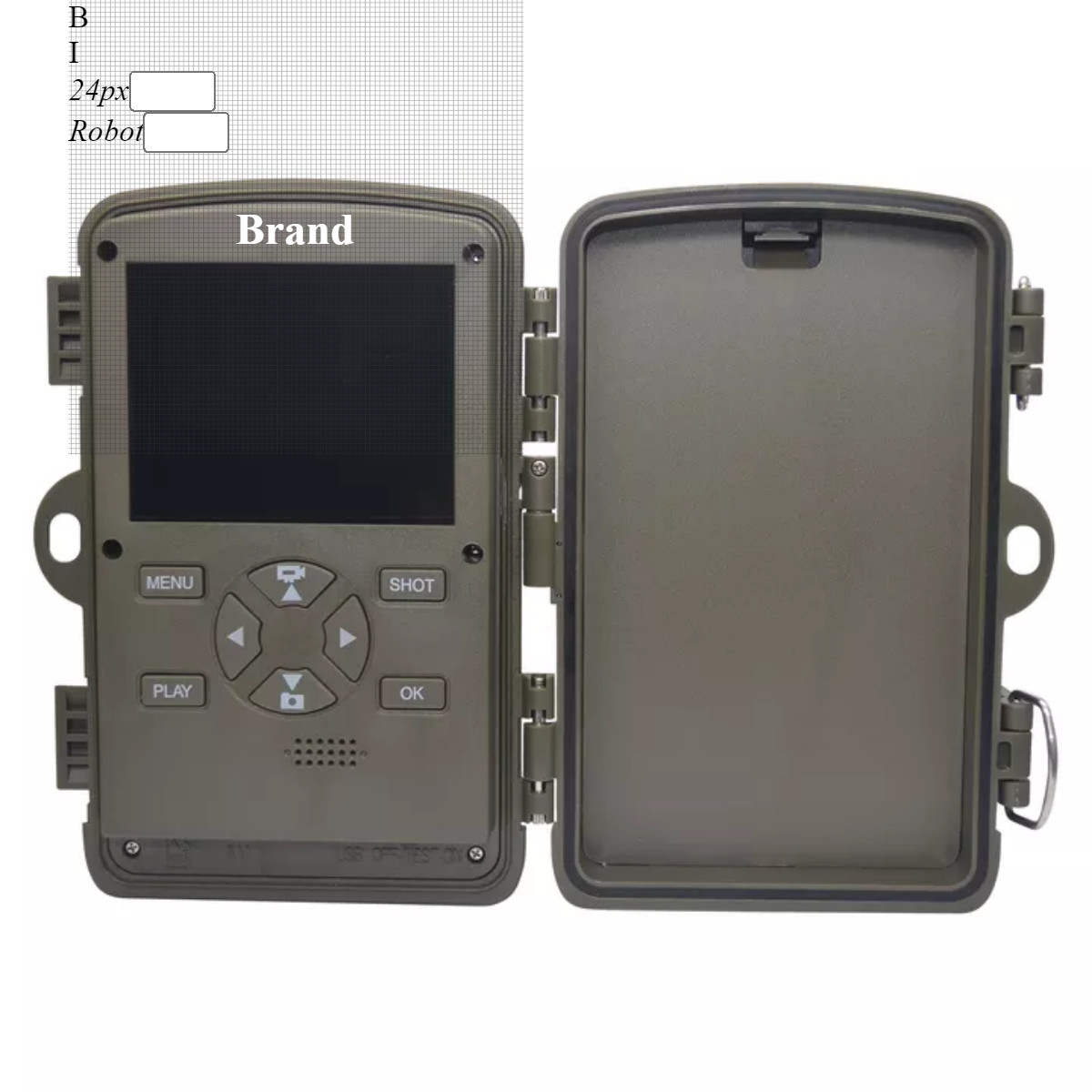

LCD Display
2.4"TFT 720*320
External memory(TF card, Class 6 Above, up to 256GB)
Operation keypad
8 Keys
The number of IR lamp
Range of IR flash
Triggering distance
25m( Below 77°F/25°C at the Normal Level)
PIR sensing angle
Triggering time
0.2 Second;
Trigger interval
5sec. - 60min;Programmable
Shooting numbers
Video Length
3sec-10Minutes.; Programmable
Daytine:1m-infinitive;Night time:1.5m-20m
First take Picture then Video
Time stamp
On/Off;Include serial No.,temperatureand moon phase
Time lapse
On/Off; Time Lapse Programmable
Compressed video
TL Video Time Laps 3 Second ~ 24Hours
Endless Capture
On/Off; (On时,接近卡满时会删除最早的文档)
Target Recording Time1
Time Laps 1 Second ~ 24Hours
Target Recording Time2
Time Laps 1 Second ~ 24Hours
Device serial No.
4 digits or 26 alphabets set by yourself
Build-in Micophone/Speaker
Auto-distinguish images
Color images in daytime/black & white night images
Automatic screen saver
Automatic screen saver in 2 minutes while no keypad controlling
PC interface
Mini USB2.0
Power supply
4xAA;Expandable to 8xAA,external 6V power supply,at least 1.5A
Standby time
approx.12 months
Password protection
4-Digit Numbers
Spray-water protected
Spray-water protected
Operating temperature
-20℃ to +60℃
Storage Temperature
-30℃ to +70℃
Dimensions & Weight
approx.136*90*72mm /


New Arrival 4K Hunting Camera 20MP 2.4 Inch TFT LCD IP66 Waterproof 0
New Arrival 4K Hunting Camera 20MP 2.4 Inch TFT LCD IP66 Waterproof 1
Why choose us?
Shenzhen TsdTech Technology Co., Limited Is a Factory Supplier, Import And Export Manufacturer.

OEM&ODM are available, welcome to contact us!
1. Logo printing/laser on the product
2. Customized color box, change outer content or box type or make a luxury box
3. Customized manual
4. Customized color
5. Custom a brand new function/apperance similar product


Q. Are you a manufacturer or a trading company?
A: We are a one-stop professional manufacturer with BSCI, 8 production lines, own experienced R&D team, providing OEM & ODM service.

Q: What is the MOQ?
A: The general MOQ is 1000pcs, and we could support trial orders with small quantities to test the market.Sample is available for testing within one day

Q: Could I customize the logo on the product and packaging?
A: Yes, customized logo and packaging are available,and we also can support other OEM service,such as customized color,function etc....

Q: What are the lead time of the sample and bulk order?
A: Sample: 1~3 days if in stock.Bulk order: 15~35 working days.

Q: How do you control the quality?
A: We have a perfect QC system (IQC, IPQC, FQC, OQC team),14 tests on production lines, and 100% aging testing before packaging.
